Wiring Connecting Terminals - QFN44 MLF44 Programming Socket IC ZIF Test Socket Pitch 0.4mm Clamshell Chip Size 6 * 6 Flash SMT/SMD Test Socket

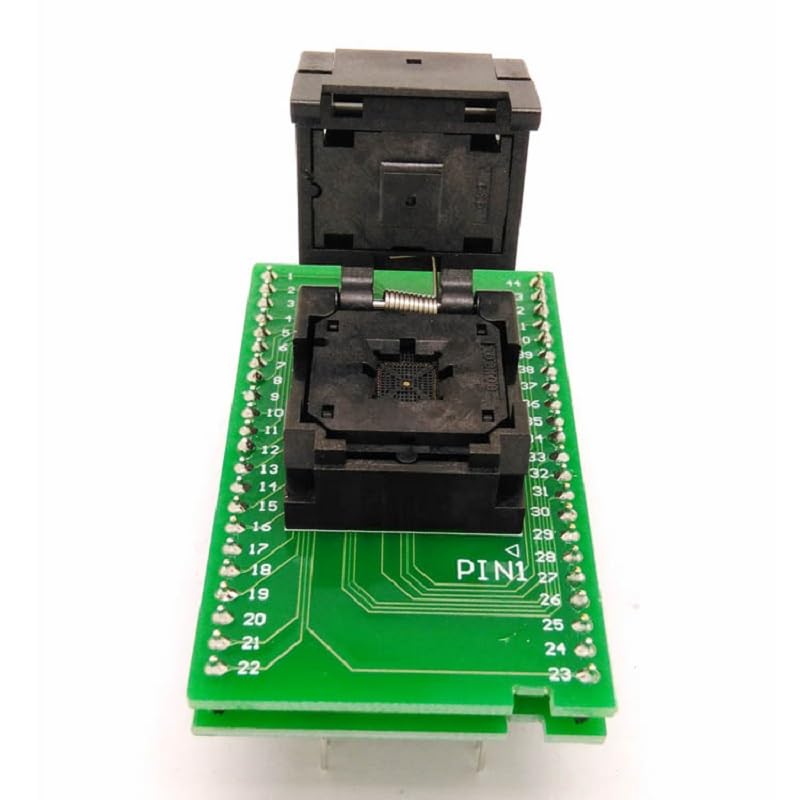

QFN44 MLF44 Programming Socket ZIF IC Test Socket Pitch 0.4mm Clamshell Chip Size 6*6Flash SMT/SMD Test SocketFeatures:a.Clamshell structure with double board b.Adopting engineering material for socket structure,Strength is high ,lifetime is longc.Adopting import BeCu material for socket contactSpring ,thickening gold-plating surface ,impedance is small elasticity is goodd.For 0.4mm pitch packagee.Thru hole design Material & Performance: socket Body: PEI Contacts:Beryllium Copper Alloy Contact Plating:Gold over Nickel Operation Force:2.0KG min, the more PINs the greater force. Contact Resistance:50m max Dielectric:700V AC for 1 minute Insulation Resistance:1,000M 500V DC Max Current Capacity : 1A Temperature Rating:-55 ~+175 Life Span 15,000 Times (Mechanical)2. Specification and Dimension :a) Type : QFN44b) Pin pitch : 0.4 mmc) Pin Count : 44d) Applicable IC Body Dimension : 6*6mm

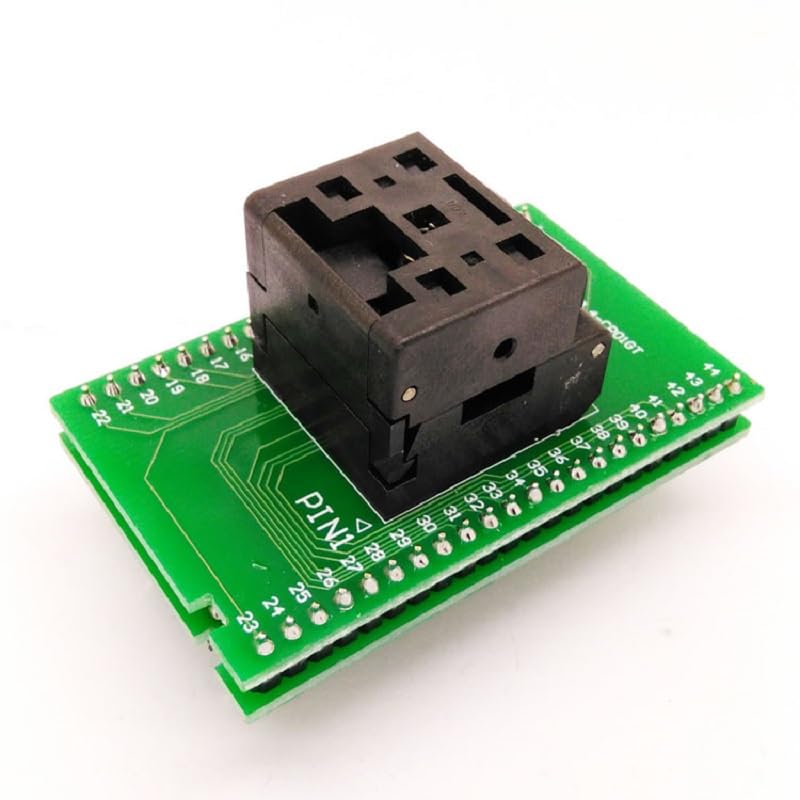

• a.Clamshell structure with double board
• b.Adopting engineering material for socket structure, Strength is high ,lifetime is long
• c.Adopting import BeCu material for socket contact

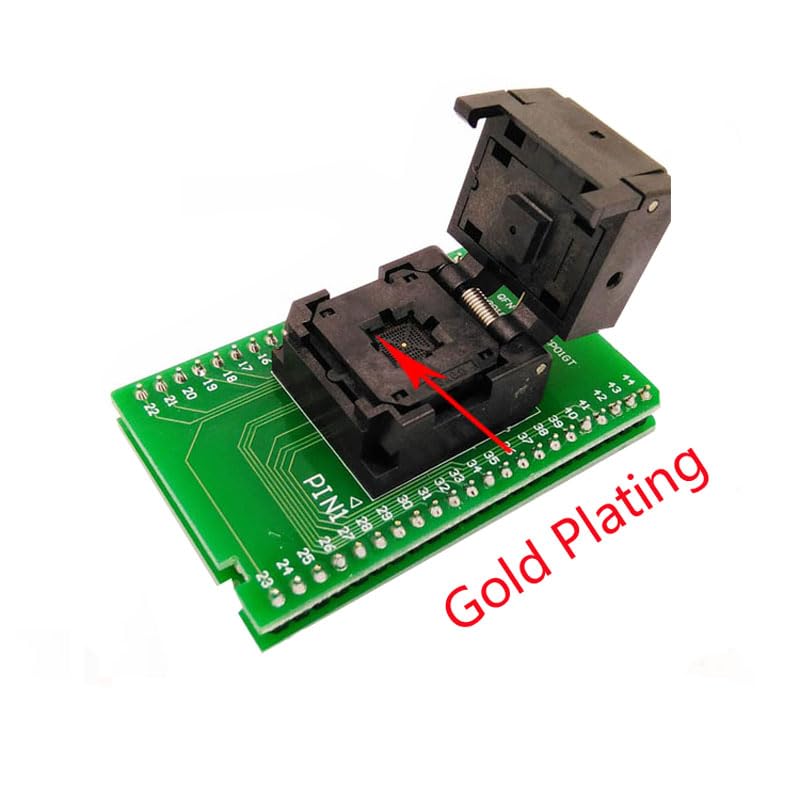

• Spring ,thickening gold-plating surface ,impedance is small elasticity is good
• d.For 0.4mm pitch package
