Small Parts 18-8 Stainless Steel Machine Screw, Plain Finish, Flat Head, Phillips Drive, Meets ASME B18.6.3, 7/16" Length, Fully Threaded, #0-80 UNF Threads (Pack of 100)
4.6 (106 items)
Limited Time Sale$5.93 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211237632 | Release Date | 2026/04/04 | List Price | $3.96 | Model Number | 211237632 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

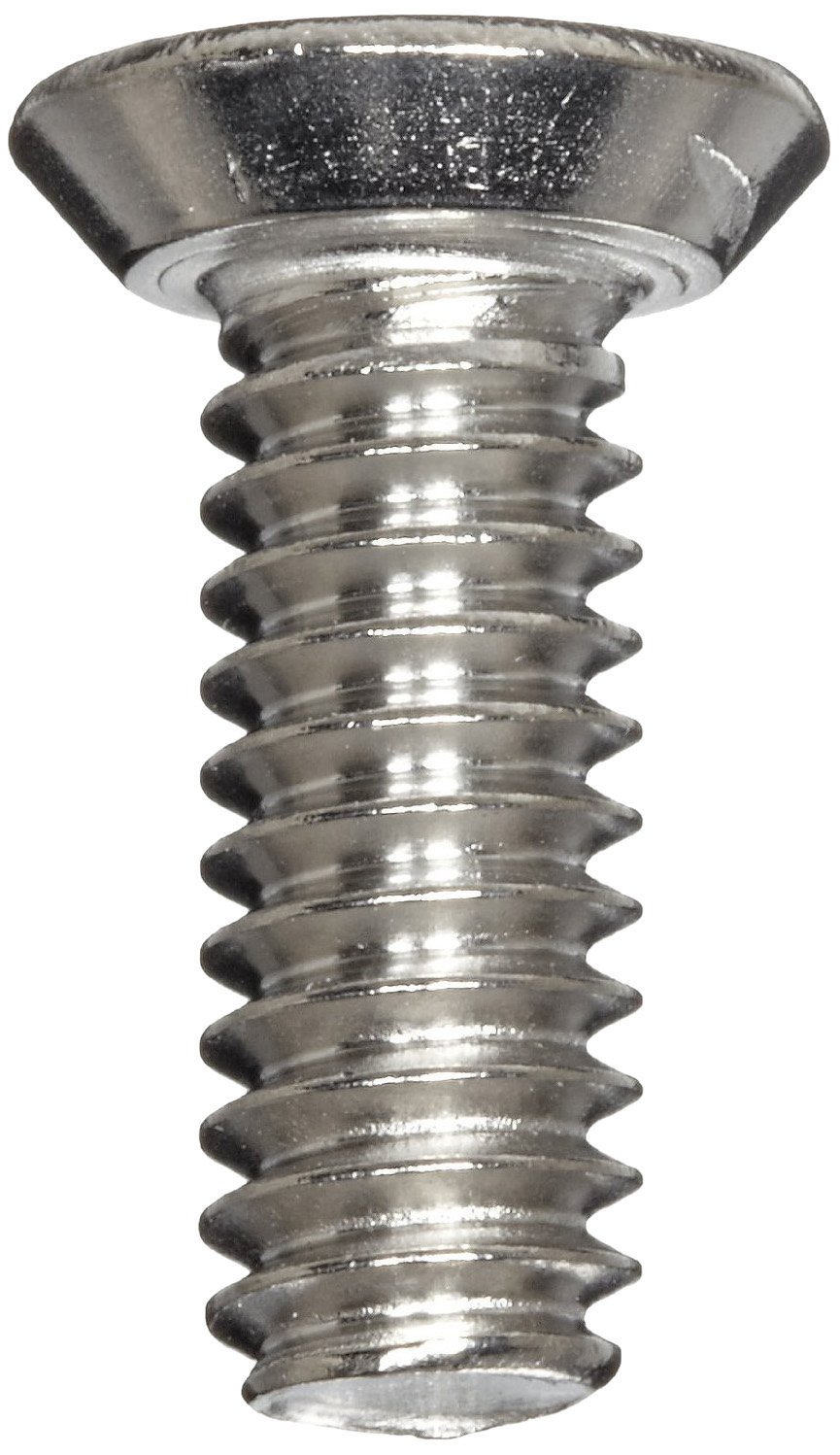

The 18-8 stainless steel machine screw has a plain finish and a flat head with a Phillips drive, and meets American Society of Mechanical Engineers ASME B18.6.3 specifications. The 18-8 stainless steel material provides strength and offers good corrosion resistance in many environments. The material may be slightly magnetic. The Phillips drive has an x-shaped slot that accepts a Phillips driver and is designed to allow the driver to slip out of the head to help prevent over-tightening and damage to the thread or fastener. The flat head is cone shaped for use in countersunk holes and has a flat top that fits flush with the mated surface. Machine screws are threaded fasteners that are typically used with nuts or drilled and tapped (threaded) holes. Machine screws are available with a variety of head shapes, which determine how the screw interacts with the mating surface, and drive styles, which determine the type of driver required to install and remove the screw.
- 18-8 stainless steel provides good corrosion resistance and strength
- Phillips drive has an x-shaped slot that accepts a Phillips driver and is designed to prevent over-tightening
- Flat head is cone shaped for use in countersunk holes and has a flat top that fits flush with the mated surface
- Meets ASME B18.6.3 specifications
- Plain surface has no finish or coating
| Brand | Small Parts |
|---|---|
| Color | Silver |
| Set Name | 100 Count |
| Head Type | Flat |
| Size Name | #0-80 |
| Head Angle | 82 Degrees |
| Metal Type | Stainless Steel |
| Unit Count | 100.0 Count |
| Part Number | B009165DKG |
| Thread Size | #0-80 |
| Thread Type | Fully Threaded |
| Drive System | Phillips |
| Finish Types | Plain |
| Grade Rating | 18-8 |
| Manufacturer | Small Parts |
| Thread Style | Right Hand |
| Fastener Size | #0-80 |
| Fastener Type | machine screw,magnetic |
| Item Diameter | 0.06 Inches |
| Material Type | Stainless Steel |
| Exterior Finish | Plain |
| Item Dimensions | 0.44 x 0.06 inches |
| Thread Coverage | Fully Threaded |
| Number of Pieces | 100 |
| Screw Head Style | Flat |
| Screw Point Style | Flat Point |
| Set Screw Thread Type | UNF |
| Compatible Groove Diameter | 0.06 Inches |
