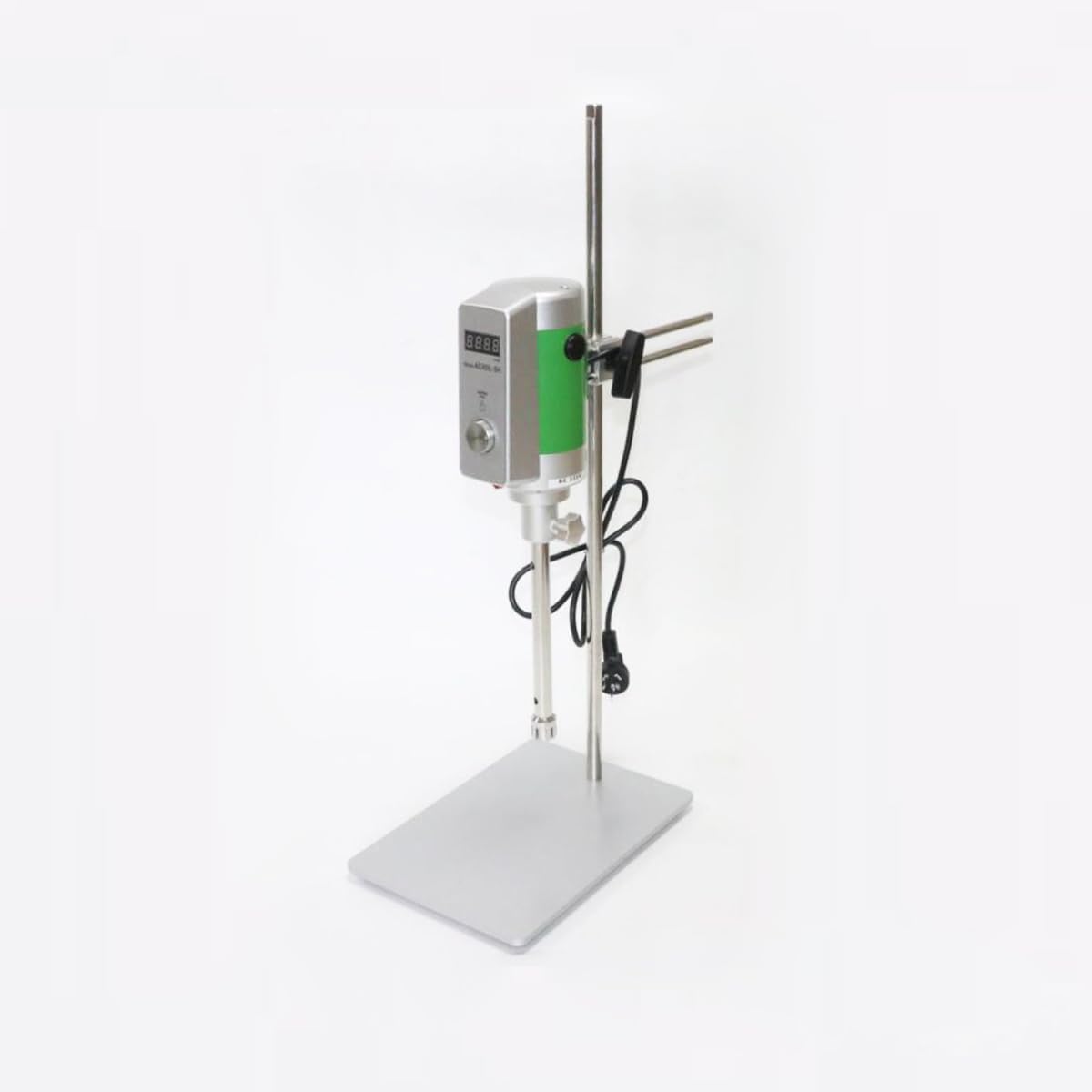

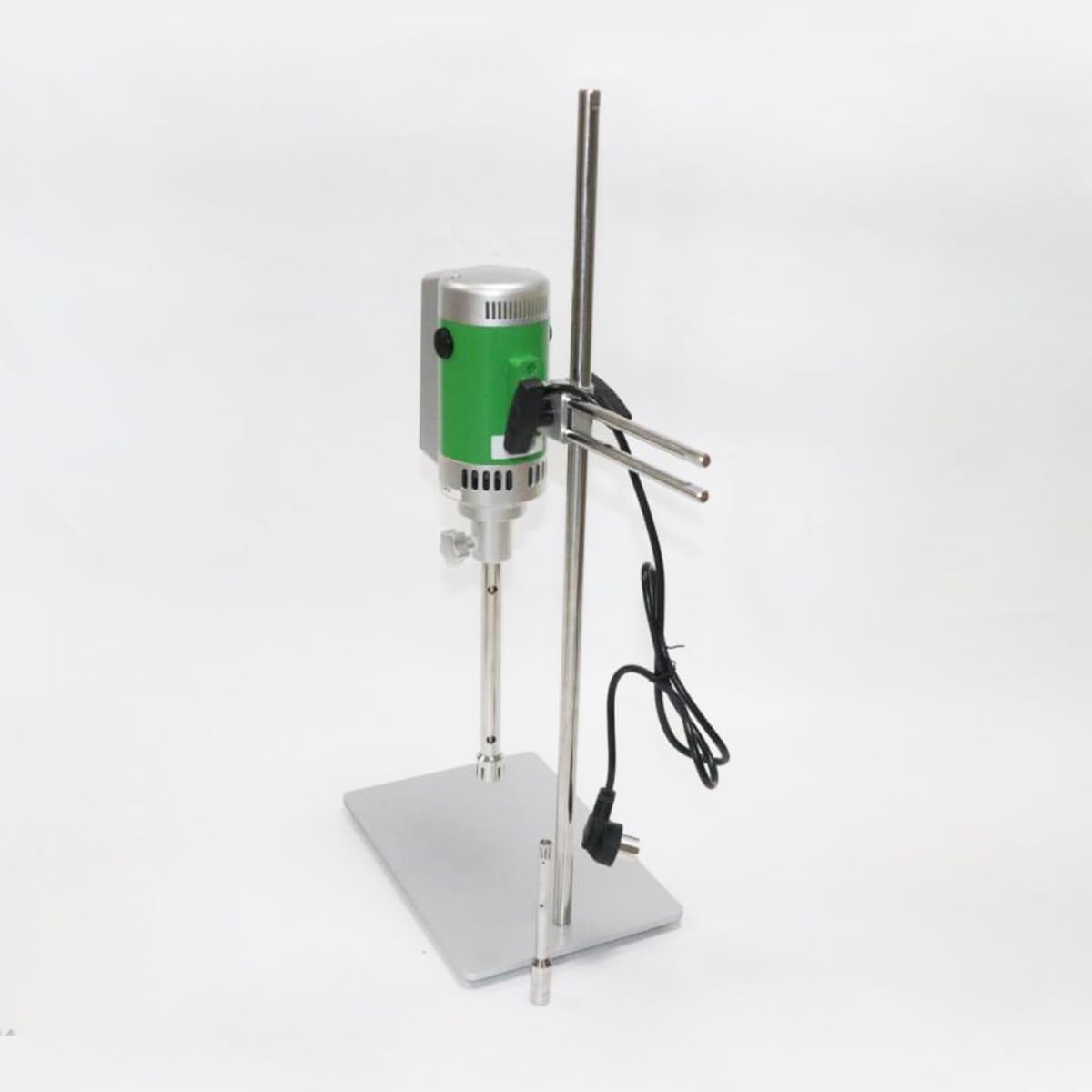

Lab High Speed Homogenizer, SHengwin 2000-24000rpm High Shear Mixer Emulsifying Machine Laboratory Disperser Emulsifier with 10G and 25G Working Heads

Note: Please kindly know that the high speed homogenizer is 220V, but there is a 110V to 220V Step-up Transformer in the package. Specifications: Model: AD300L-SH Rated Voltage: AC 220V Rated Frequency: 50/60Hz Input Power: 680W Output Power: 400W Rated Torque: 15.9 N.cm Working Mode: S1 (continuous) Speed Range: 2000-24000rpm Speed Control: stepless Timing Control Range 1-999min Speed Dynamic Detection Function: yes Speed Memory Function: yes Overload Protection Function: yes Speed Display: LED digital display Working Head Material: SS 304 stainless steel Standard Configuration Working Heads: 10G/25G 10G Working Head Length: 182mm Mixing Capacity(H2O): 25-100ml Stator Diameter: 10mm Rotor Diameter: 7.2mm Maximum Speed Range: 24000rpm Maximum Circumferential Speed: 9m/s Depth of immersion in a liquid: 25-120mm Maximum operating temperature: 120℃ Permitted Environmental Temperature: 5-40℃ 25G Working Head Length: 225mm Mixing Capacity(H2O): 80-5000ml Stator Diameter: 25mm Rotor Diameter: 19mm Maximum Speed Range: 18000rpm Maximum Circumferential Speed: 17.9m/s Depth of immersion in a liquid: 50-165mm Maximum operating temperature: 120℃ Permitted Environmental Temperature: 5-40℃ Package Included: 1 * 220V High Speed Homogenizer 1 * 110V to 220V Step Up Transformer 1 * 10G Working Head 1 * 25G Working Head 1 * English Manual

• The 220V high speed homogenizer is equipped with two stainless steel working heads(10G and 25G), and a 110V to 220V Step Up Transformer allowing the homogenizer to be used in 110V.
• Our emulsifying machine has the overload protection function, easy to operate, its maximum speed can reach 24000rpm.
• Digital display makes running speed on screen intuitive, which can be set arbitrarily as required by the experiment; timing control function ensures that the time of the experiment is effectively controllable.
• The high shear disperser emulsifier has stable running state, wide experimental application area, microprocessor controls the running speed ensuring reliable constant speed.
• This homogeneous dispersing machine is widely applied in teaching, research and production in fields such as laboratory, biology, physics, new materials, new energy, cosmetics and food industry, etc.
