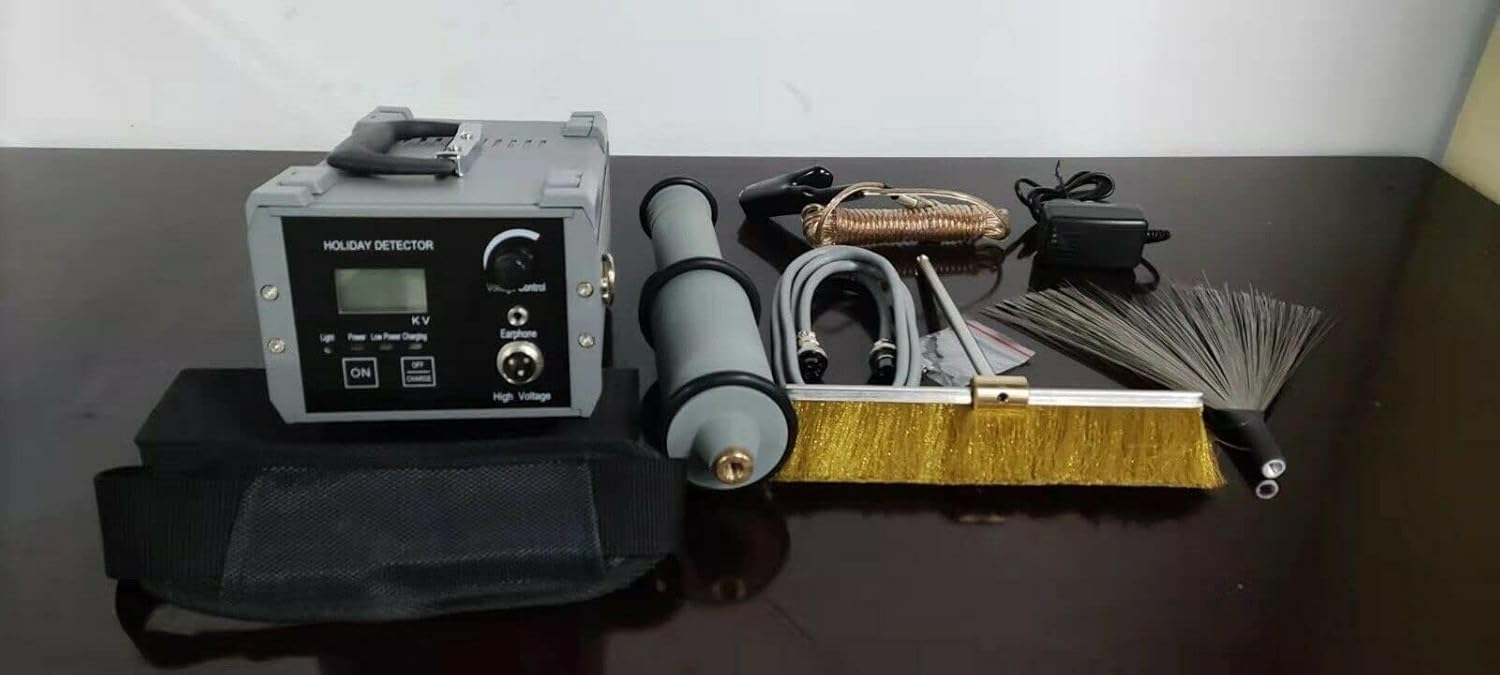

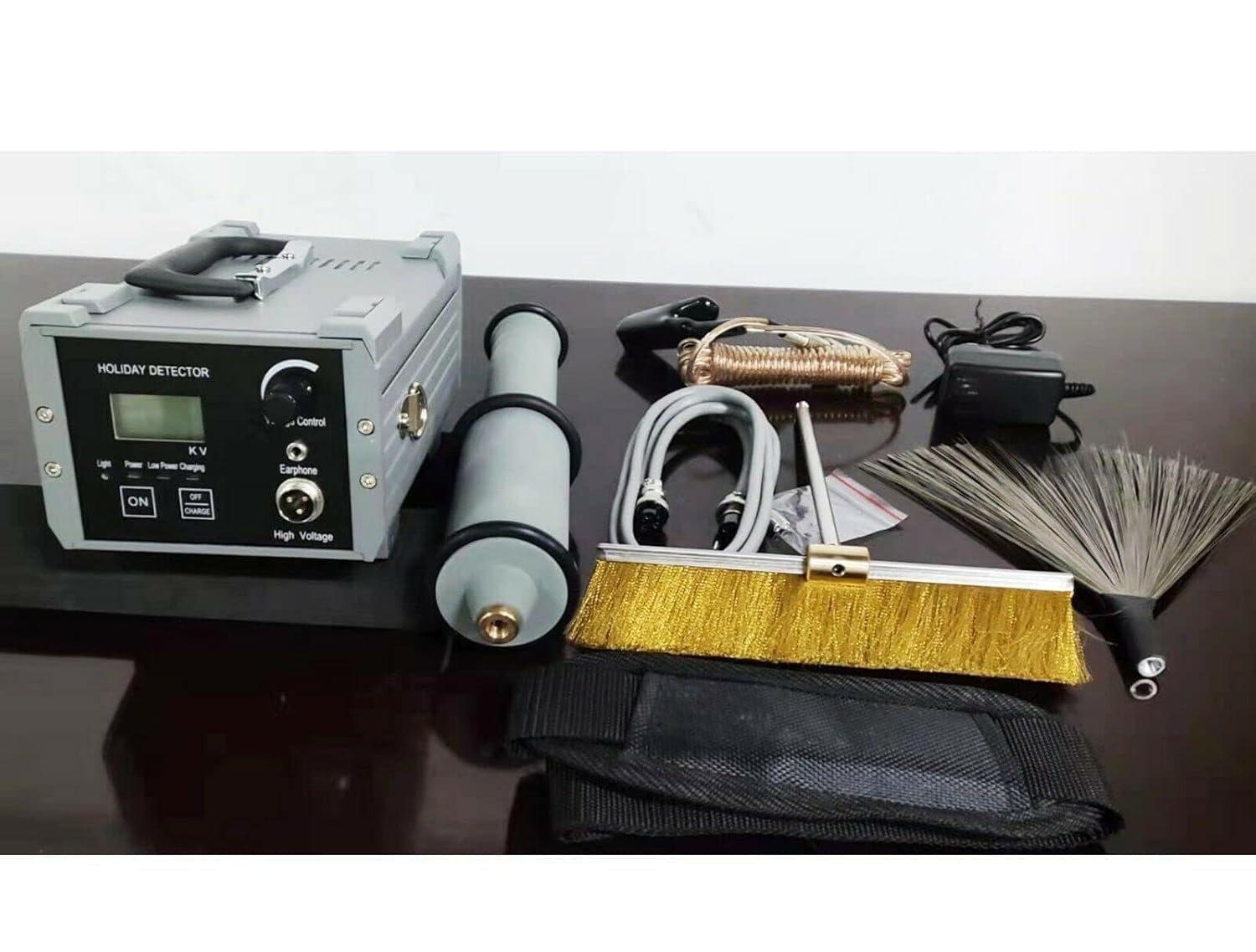

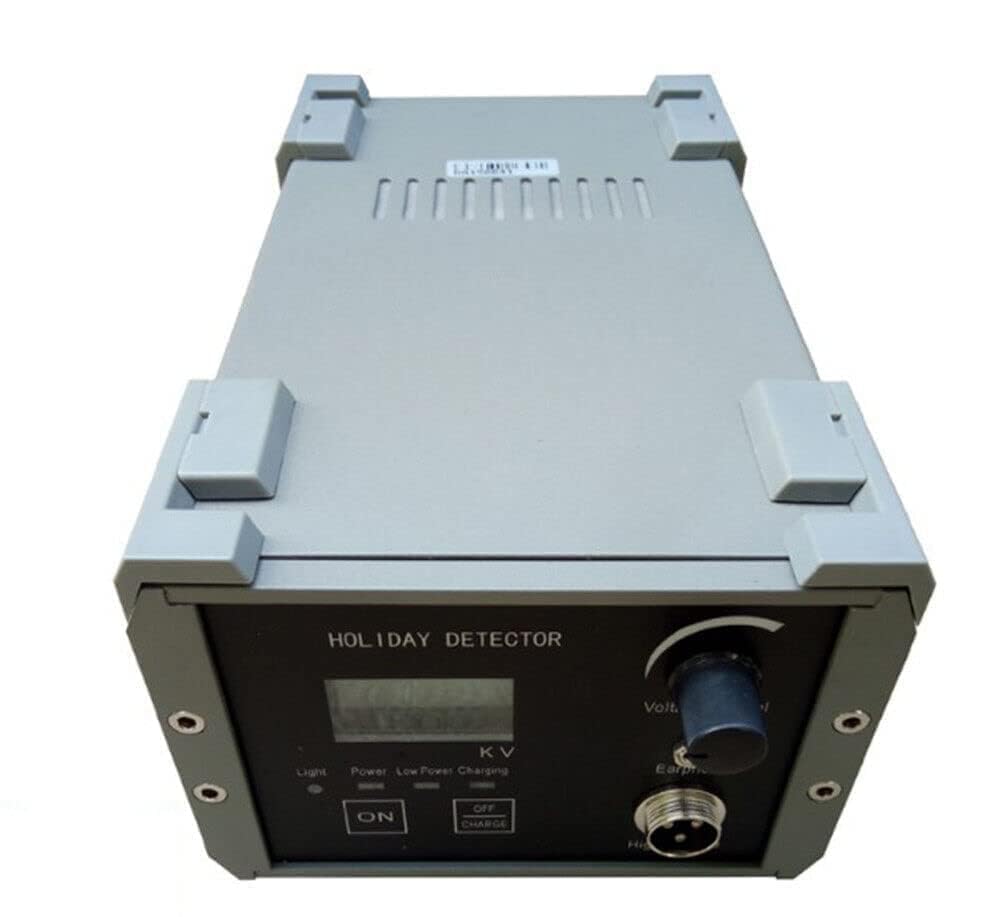

Holiday Detectors Test Equipment High Voltage Electric Spark Leak Detector with Detection Thickness 0.05 to 10mm Output High-Voltage 0.6kv to 30kv for Detecting Different Thickness of Coatings

Introduction:◆The instrument can use different thicknesses of glass-lined, glass, steel, coal tar epoxy coatings and rubber linings◆The instrument lightweight, simple operation, stable and reliable, battery-powered◆It is particularly suitable for field operations, widely used in chemical , petroleum, rubber, ceramic industry, is used to detect metal corrosion coating quality tool.◆Holiday detector is a dedicated instrument for the detection of metal corrosion coating quality ，through a variety of coating the surface of a conductive substrate plus a certain amount of pulse voltage, such as the coating is too thin, metal or a leak pinhole leak,◆when the pulse voltage throught the coating surface produce a spark discharge gap formation breakdown, while a pulse is sent to the alarm circuit signal to the alarm sound the alarm, and thus achieve the purpose of detection of coating. Technical Specifications:◆1. Applicable detection thickness: 0.05 ~ 10mm(50μm~10mm)◆2. Output High-voltage: 0.6kv~30kv(600v~30000v) (stepless and continually adjustable)◆3. Direct indication of output high-voltage◆4. Battery: 12V/2800mA◆5. Power consumption: about 6W◆6. Volume of main detector: 220×130×88 mm◆7. Back light◆8. Instantaneous boot, and automatic shutdown◆9. 3–digit LCD displays output voltage, and with all-touch panel◆10. Alarm: Dual alarm with earphone and buzzer◆11. Packing List:■ host ×1■ high voltage probe ×1■ brush(brush / straight brush）×2■ connecting rod ×1■ headphones ×1■ strap ×1■ fuse ×2■ manual ×1■ warranty card ×1■ charger ×1■ grounding wire ×1■ grounding rod ×1■ packing box ×1

• This holiday detector is a high-voltage special detector that is used to detect the quality of metal anti-corrosion coating. This detector can detect different thickness of coatings, such as glass lining, glass reinforced plastic, epoxy coal tar, rubber lining and so on.
• The detector will emit bright sparks and with sound alarm when something is wrong with the coating, such as the emergence of pinhole, air bubbles, fissures and cracks. As powered by Ni-MH battery, and with small size and light in weight, it is especially suitable for field operation.
• The detector is the essential tool used for detecting the quality of metal anti-corrosion coating and can be used widely in many industries including chemical, petroleum, rubber and ceramic, due to its sophisticated design and stable & reliable performances.
