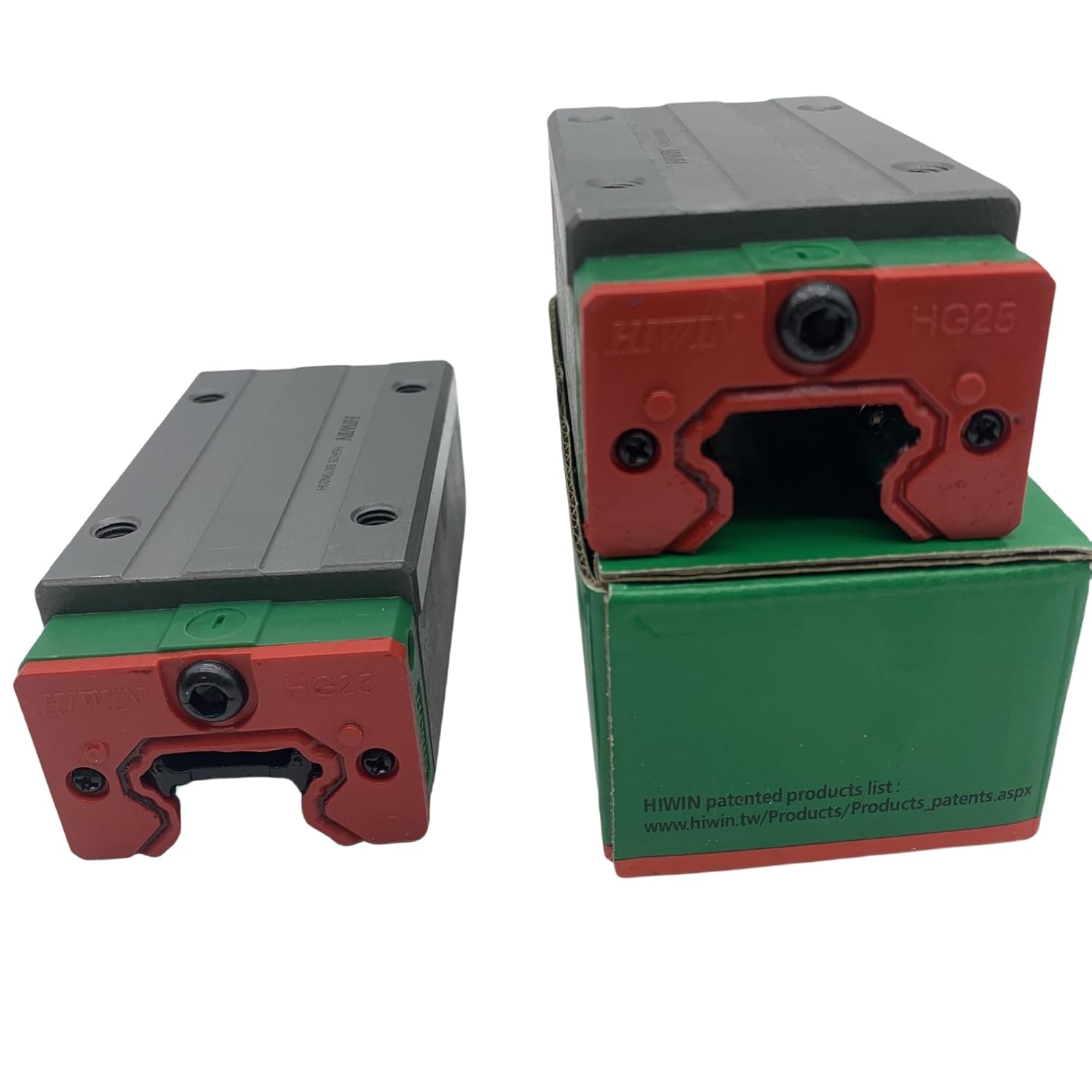

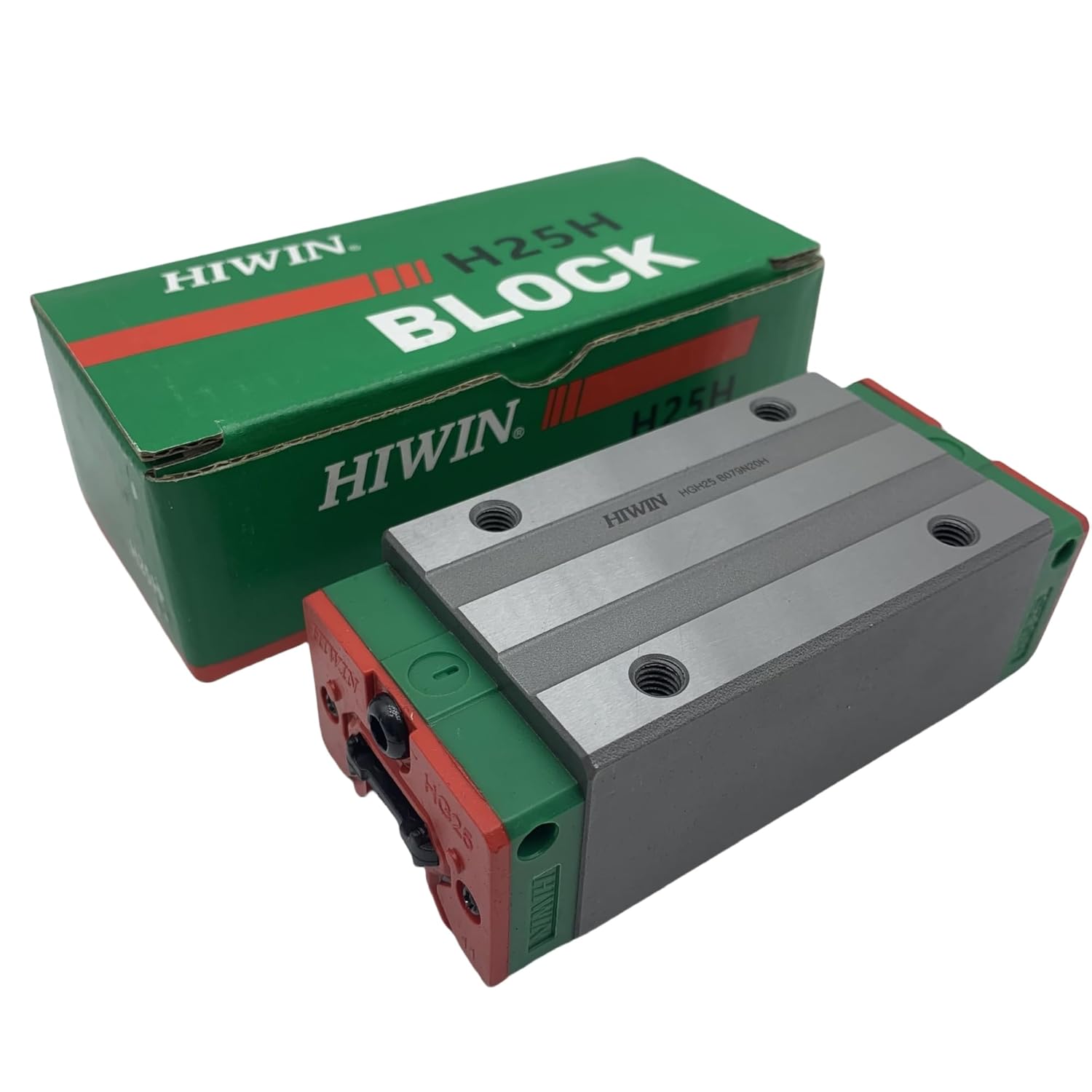

HIWIN Linear Guide HGH25HA HGH25 HGH25HAZ0C HGH25HAZAC GK Block Linear Carriage/Slider/Rail Bearings Motion Control for CNC Machine Parts 3D Printer Automation Industry Semi-Conductor

HG Series -Heavy Load Ball Type Linear Guideway HG series linear guideways are designed with load capacity and rigidity higher than other similar products with circular-arc groove and structure optimization. lt features equal load raings in the radial, reverse radial and lateral directions, and self-aligning to absorb installation-error. Thus, HlWiN HG series linear quideways can achieve a long life with high speed, high accuracy and smooth linear motion. [1]Self-aligning capability By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregulanties and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation. [2]Interchangeability Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range which means that any blocks and any rails in a specific series can be used together while maintaining dimensiona tolerance. And a retainer is added to preventthe balls from falling out when the blocks are removed from the rail. [3) High rigidity in all four directions Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions, Furthemore, the circular-arc aroove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity.

• Self-aligning capability:By design, the circular-arc groove has contact points at 45 degrees. HG series can absorb most installation errors due to surface irregulanties and provide smooth linear motion through the elastic deformation of rolling elements and the shift of contact points. Self-aligning capability, high accuracy and smooth operation can be obtained with an easy installation
• Interchangeability:Because of precision dimensional control, the dimensional tolerance of HG series can be kept in a reasonable range which means that any blocks and any rails in a specific series can be used together while maintaining dimensiona tolerance. And a retainer is added to preventthe balls from falling out when the blocks are removed from the rail
• High rigidity in all four directions:Because of the four-row design, the HG series linear guideway has equal load ratings in the radial, reverse radial and lateral directions, Furthemore, the circular-arc aroove provides a wide-contact width between the balls and the groove raceway allowing large permissible loads and high rigidity
• High Durability:Even under a preload or excessive biased load, differential slip of balls does not occur. As a result, smooth motion, high wear resistance, and long-term maintenance of accuracy are achieved
• Rails available:If you need rails,please contact us and send the length
