Height-Enhanced Mini Lathe For Metals, 50mm center height 36W 20000 RPM 12VDC For Wood & Soft Metal Crafting Tool, Woodworking Craft/Workshops/Models for Science Hobby Education

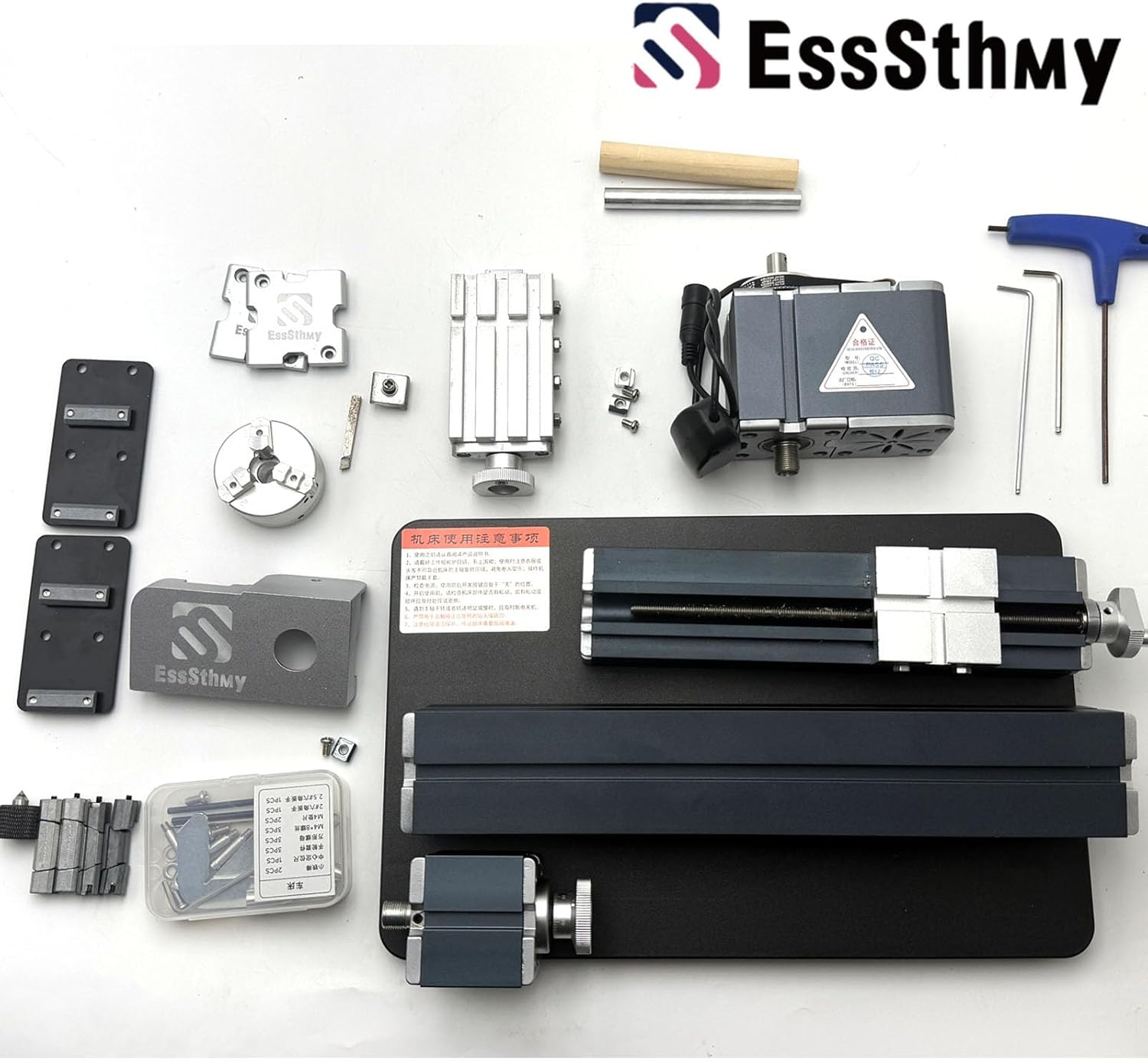

The machine tool adopts a scientifically heightened base structure, raising the center height to 50mm, which significantly increases the processing diameter! It can easily adapt to larger workpieces. ⭐️Technical Parameters Motor speed: 20,000 rpm Input voltage/current/power: 12V/3A/36W, switch power supply input voltage: 110V - 240V Maximum processing material diameter: 50mm; length: 150mm Center height: 50mm, center distance: 150mm; center positioning precision: 0.01~0.03mm X-axis slider stroke: 150mm Maximum diameter of workpiece clamped by three-jaw chuck: 50mm. Optional metal four-jaw chuck can clamp special-shaped workpieces (such as square, oval, hexagonal workpieces), expanding the lathe's application range. Z-axis handwheel and tailstock handwheel are equipped with 0.02mm precision scale lines (mold integrally formed, not pasted) to improve workpiece processing accuracy. The handwheel adopts a 3/4 semi-circular structure for easy disassembly and assembly of the machine tool connecting block. Machine tool size: 310mm×125mm×175mm, base size: 315mm×200mm×17mm. ⭐️Package Includes: 1 × Mini Metal Lathe 1 × Power Adapter 1 × Accessory Kit 1 × Bottom Plate 1 × User Manual ⭐️Lathe Operation Guide I. Usage Methods 1. Workpiece Fixing： ◦ Use a center positioning ruler to find the center of the workpiece, unscrew the three-jaw chuck with two small iron rods, place one end of the workpiece into the center of the chuck and tighten it. ◦ Turn the handwheel to push the tailstock center into the workpiece center and clamp it tightly, then finally tighten the tailstock fixing screw. 2. Processing Operation： ◦ After connecting the power supply, the lathe starts working. ◦ The Y-axis direction controls the feed amount by moving the small slider, and the X-axis direction adjusts the processing position by moving the large slider. II. Precautions Workpiece Concentricity Handling：If the workpiece is not concentric and a virtual circle appears, the outer virtual circle must be turned off first before processing. Cutting Amount Control： ◦ When processing wood, the cutting amount per time should be less than 2mm. ◦ When processing aluminum or copper, the cutting amount per time should be less than 1mm. ◦ Excessive cutting amount or too fast feed will trigger the motor overload protection and stop working, which can be restored after adjusting the cutting amount. III. Maintenance and Lubrication Daily Maintenance：Clean the lathe in time after each use, and add a little lubricating oil to the screw and slider positions after multiple uses. ⭐️What will you get? ✅ A fully assembled machine tool, accompanied by a video on the homepage and an English user manual for easy operation; basic operating tools for the lathe, used for adjusting the lathe when processing workpieces of different lengths. ✅ Perfect after-sales service with timely responses to your technical questions. ✅ High-quality guarantee with a one-year warranty.

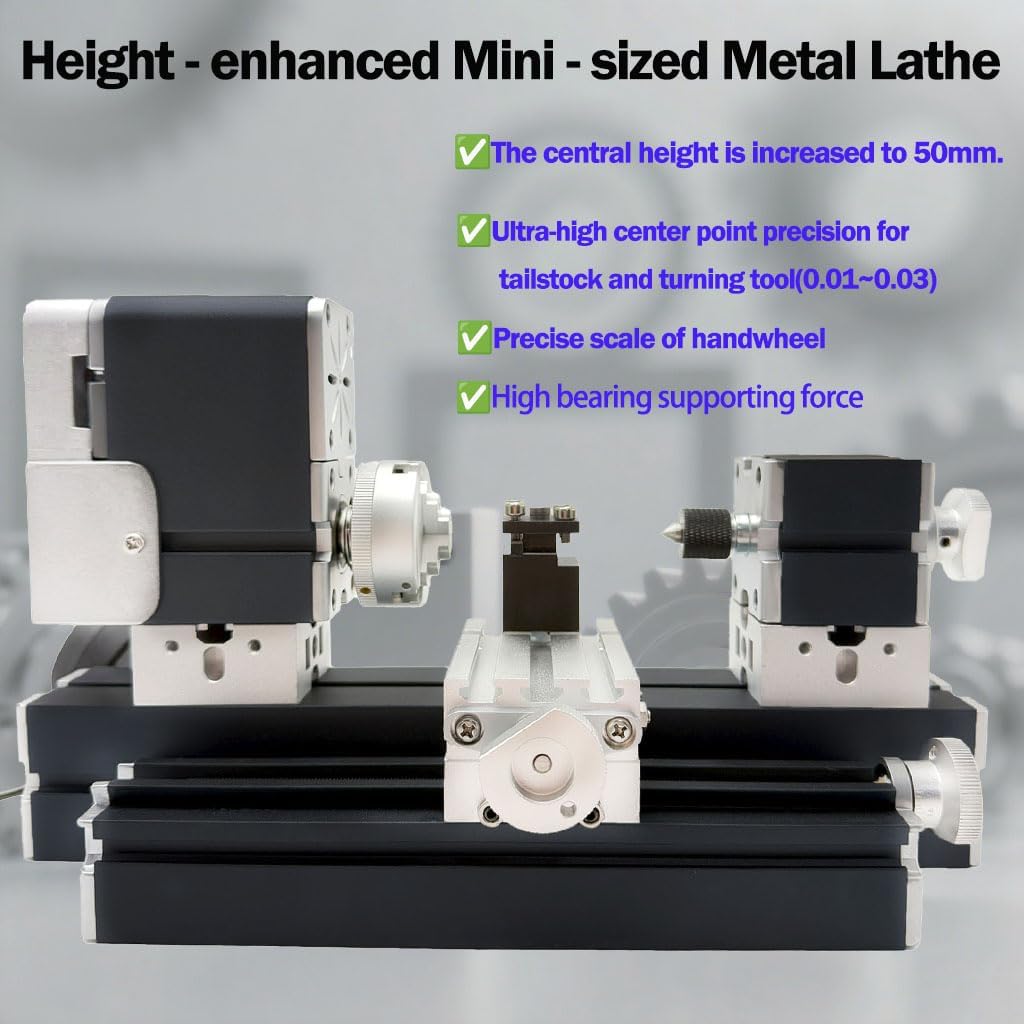

• Processing Capability: Add a heightening block to raise the center height to 50mm for cutting larger workpieces.； Suitable materials: Wood, soft metals (gold, silver, aluminum, copper), acrylic, plastic, etc., meeting the needs of professional users and amateur DIY enthusiasts.
• Brief Parameter Description_Motor speed: 20,000 rpm;Input voltage/current/power: 12V/3A/36W; switch power supply input voltage: 110V-240V; Maximum processed material diameter: 50mm; length: 150mm;Maximum diameter of workpiece clamped by three-jaw chuck: 50mm Center height: 50mm; center distance: 150mm; center positioning precision: 0.01-0.03mm(For detailed parameters, please refer to the product description.)
• All-Metal Structure: The spindle box (with auxiliary fastening holes at the rear), motor box, handwheel, gears, small slide, long slide, connecting block, three-jaw chuck (optional metal four-jaw independent chuck), belt guard, tool clamping jaw, etc., are all made of metal. The body has no plastic parts.

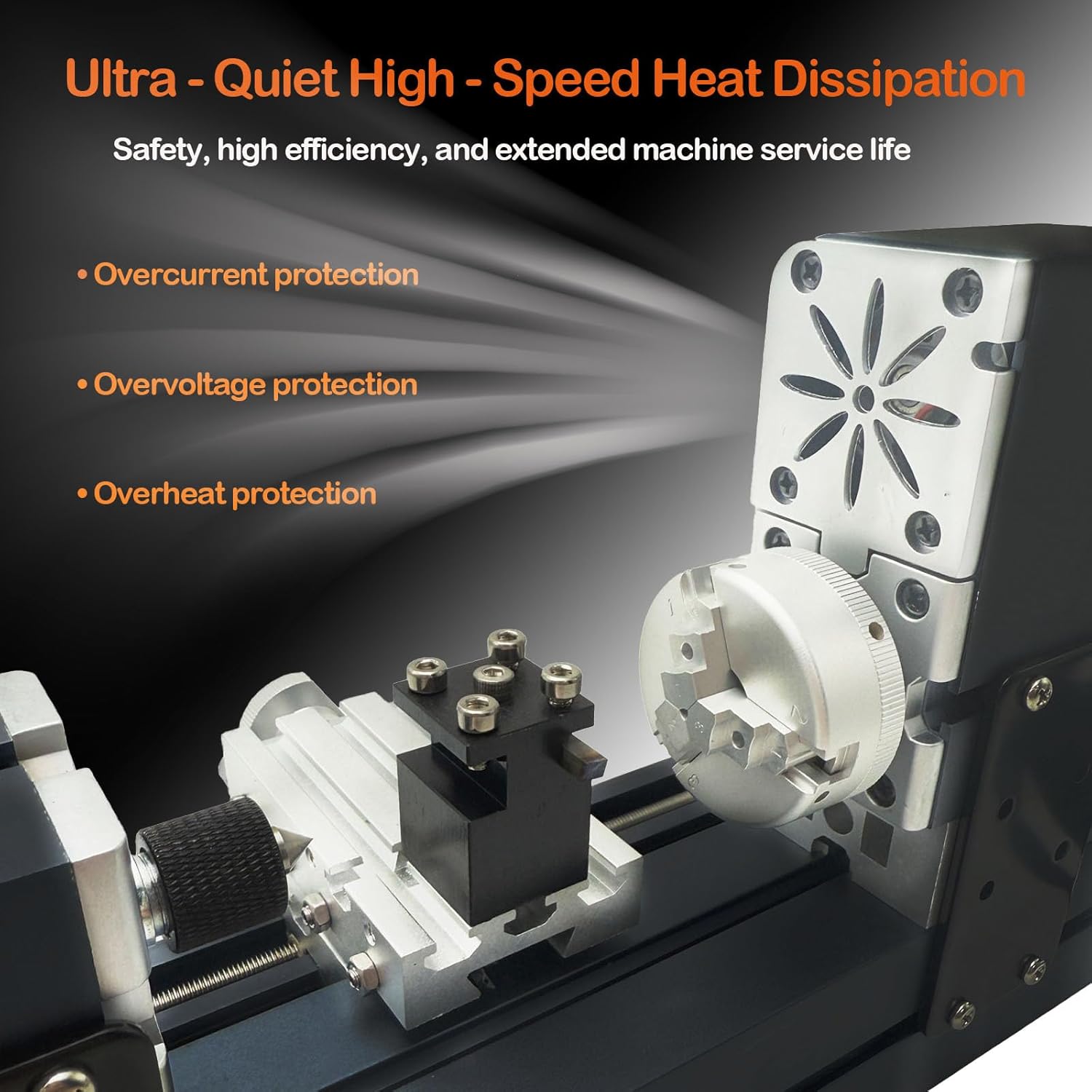

• Protective Transformer: The transformer has overcurrent, overvoltage, and overheat protection functions to ensure safe and stable operation and minimize failure risks.
• Ultra-precision Core Technology: Through precise machining and strict calibration, the deviation between the spindle and tailstock center, as well as between the spindle and tool center, is strictly controlled within 0.01-0.03mm. This ensures consistent and high-precision workpiece processing, meeting the rigorous positioning accuracy standards in the precision manufacturing field, and providing reliable guarantee for professional machining.
• Custom Ultra-Quiet Motor: Equipped with a custom ultra-quiet, high-speed, low-vibration built-in fan motor with excellent heat dissipation, ensuring quiet and efficient processing, reducing noise pollution, adapting to long-term continuous operation, and balancing precision and durability.
• Precision Handwheel: The handwheel uses electroplating technology and a 3/4 semi-circular structure for easy operation. The 0.02mm precision scale lines (integrally formed, not pasted) improve workpiece processing accuracy.
• Design and Protection: The machine tool adopts safe rounded corner processing technology to prevent metal parts from scratching the skin.
• Stability and Precision Processing: The connecting block uses a dovetail structure and a square nut design to prevent screw slippage in holes and avoid gaps caused by excessive vibration during machine use, improving stability and service life.
