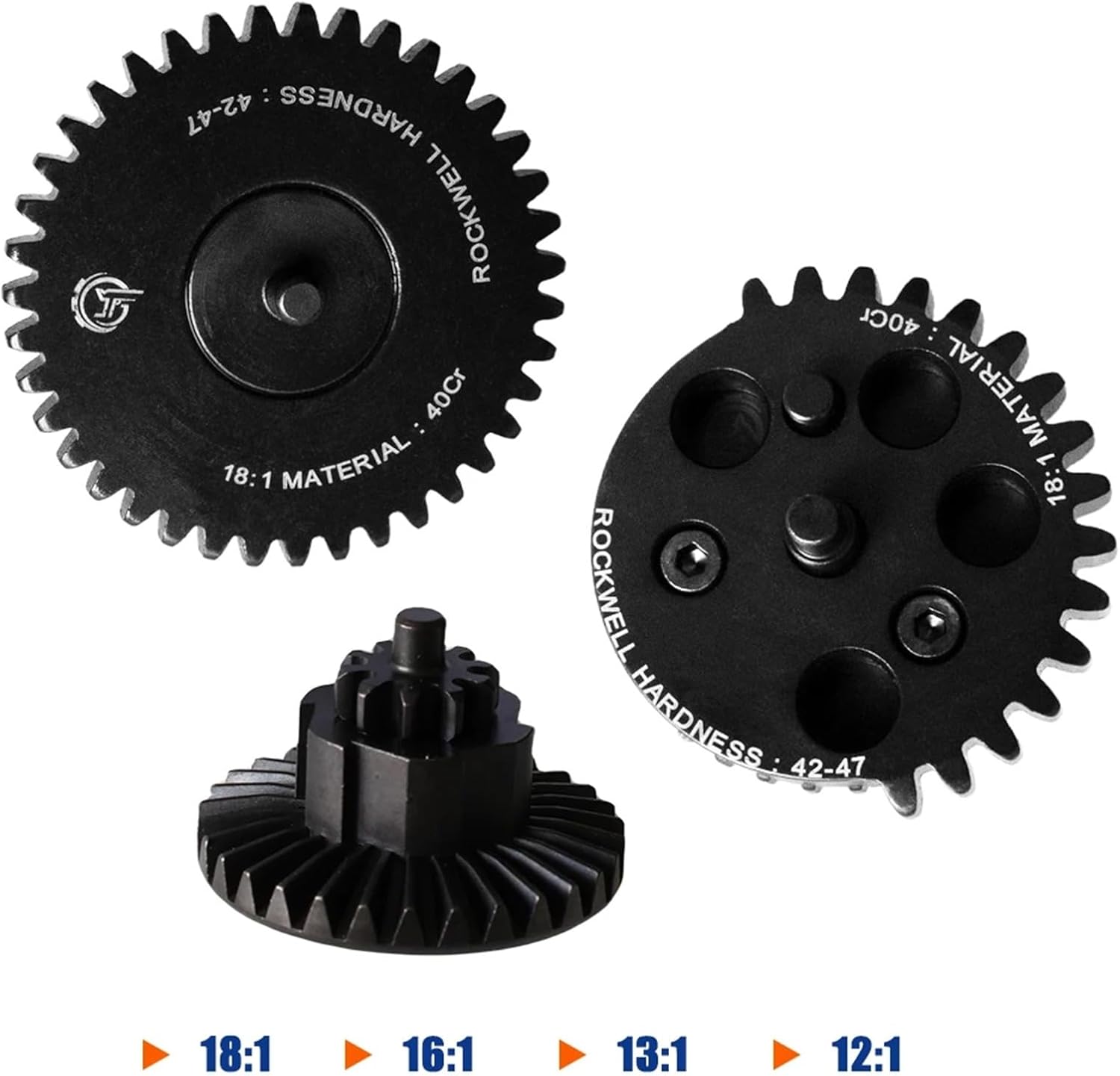

CNC Steel Cut 40Cr Series Tactical Gear Set 12:1/13:1/16:1/18:1 for EBB Version 2/3 Airsoft Gearbox

Fixed Gear BikesWHY USE 40Cr MATERIABetter material composition :40Cr is an alloy steel with more alloying elements, such as chromium, molybdenum and nickel, than 45# steel. With the addition of these elements, 40Cr gear has better wear resistance and corrosion resistance in use.More stable performance: Due to the more uniform composition of 40Cr material, the performance of its gear in the manufacturing and use process is more stable, and there will be no inconsistent performance caused by material differences.Higher hardness :40Cr gear can obtain higher hardness after heat treatment and can withstand greater load and higher working temperature. In contrast, 45# steel is prone to soft points after heat treatment, part of the point hardness does not meet the requirements, heat treatment hardening often encounter such problems, thus affecting the service life of the gear.CNC GEARPRECISION GEAROur gears are made of 40Cr steel raw materials (except for the bevel gear part), which are formed by precise CNC machining. Equipped with professional equipment such as high-precision gear hobbing machine and gear profiler to ensure high-precision manufacturing of gears. The bevel gear part is injection gear, and the center shaft gear is 40Cr steel cutting gear, which is hardened to HRC42-47 through heat treatment process to ensure the durability and hardness of the gear in high-speed operation. Currently, CNC bevel gears and motor gears are being produced to further improve the quality and performance of the products.UPDATE GEAR SET1. The and packaging box have been changed2. The number of holes in the sector gear with a diameter of 5mm has been updated from 3 to 43. The Bevel Gear shaft has been changed to a tooth shape, with a thicker tooth width and greater resistanceGEAR SETThe The newly modified gear moves the position of the column to achieve the effect of not reducing the initial speedGEAR RATIO18:116:113:112:1PRECISIONHigh-precision CNC turning, milling and corresponding modulus hobbing cutter processing tooth profileCNC TURNINGGEAR HOBBINGCNC MILLINGSTABILITY & RELIABILITYThe gear shaft and the gear piece adopt an interference fit of 005mm, and the purpose of tight connection is achieved through the press-fitting method. In actual production, only by strictly controlling the tolerance can the quality, stability and reliability of the gear connection be guaranteed. Too large or too small will affect the service life of the gear in high-speed operation, and seriously cause the gear shaft and the gear to separate.FOR EXAMPLE:HARDNESS & DEMAGNETIZINGThe 40Cr material itself has its own magnetism In order not to affect the accuracy and service life, and to avoid the adsorption of tiny metal powder on the gear, we have done demagnetization treatment before leaving the . The following is the real shot of hardness test and demagnetizationMade of 40Cr materialHardness: HRC42-47Made of 40Cr materialHardness: HRC42-47Rockwell hardness testeractual measurement valueBevel GearShaft GearThe Bevel tooth part: injection toothHardness: HRC42-47Central shaft gear: CNC 45# SteelHardness: HRC40-42Demagnetization TreatmentOUR ==========Hign-concerned Chemical : NoneIs Electric : No BatteryIs it battery/power supply : NIs it charger/adapter : NIs Batteries Included : NoModel Number : 18:1 16:1 13:1 12:1Upgrade Parts/Accessories : GearRC Parts & Accs : Starter BoxesMaterial : MetalRecommend Age : 14+yUse : Vehicles & Remote Control Toys
